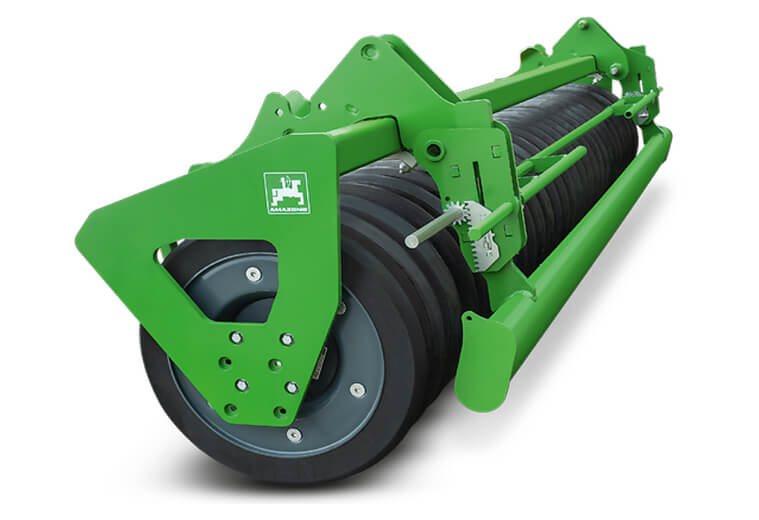

The levelling board flattens the ground between the tines and the
roller and presses stones downwards. With the handy adjustment tool, the
height of the levelling board can be adjusted with ease.

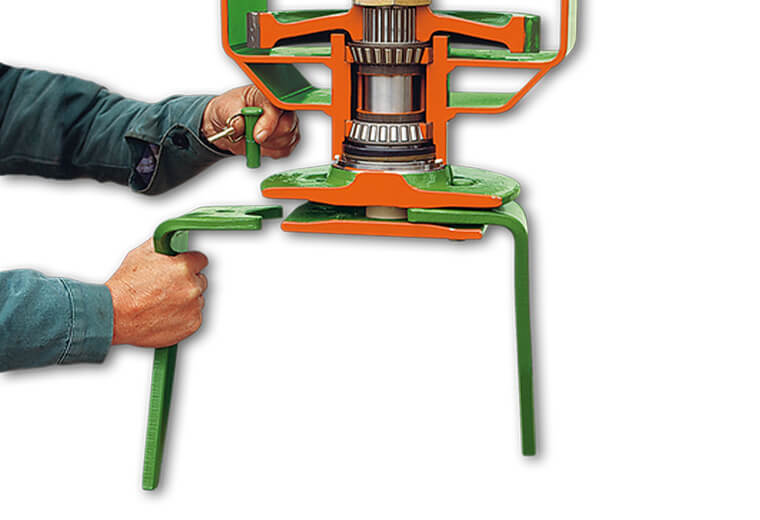

On all Amazone power harrows, the tines are simply pushed into
sockets on the tine carriers. It couldn’t be easier or quicker, there is
no tine fixing bolts that require re-tightening.

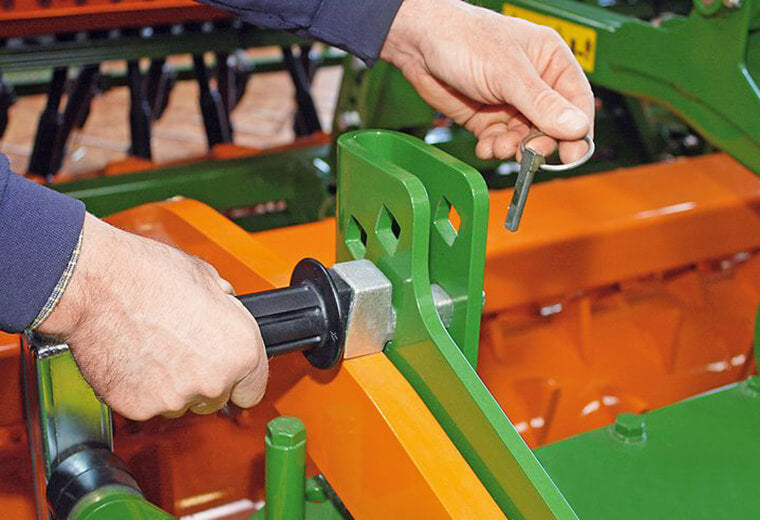

The parallel guidance of the roller and the levelling board allows
very easy and independent setting of the working depth. By the simple
repositioning of the eccentric pin, the working depth can be
conveniently matched to the field and operational conditions.

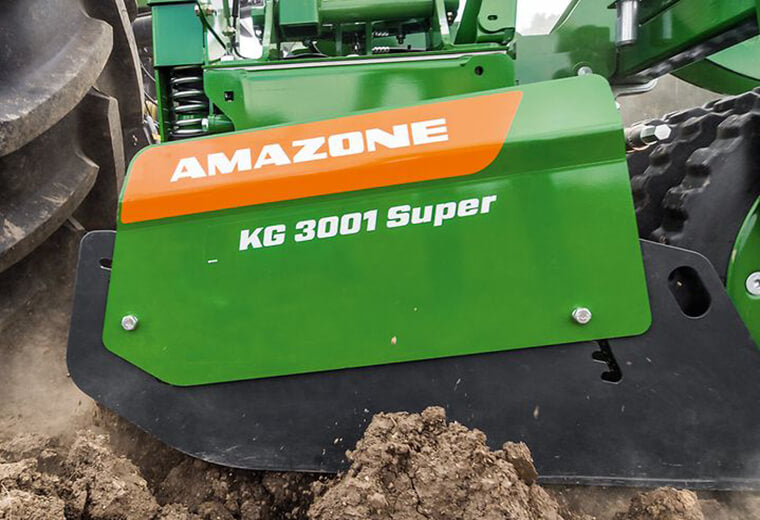

The side plates are spring loaded. Thanks to their suspension, the
side plates can be adjusted via a slotted hole and, when worn, be
simply exchanged. The handy adjustment tool supplied as standard, is all
that is necessary to make the adjustment.

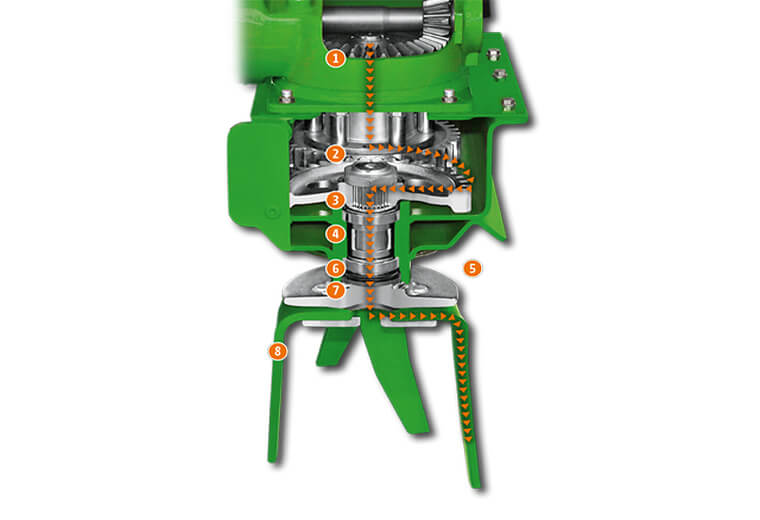

The high standing 8mm thick gear casing, with double skin base and
welded in bearing sleeves is extremely torsion resistant. This enables
it to withstand the high forces that occur when transporting heavy
packer rollers and pack-top mounted seed drills. Spur gears and bearings
are oil-immersed and maintenance free, no grease nipples.

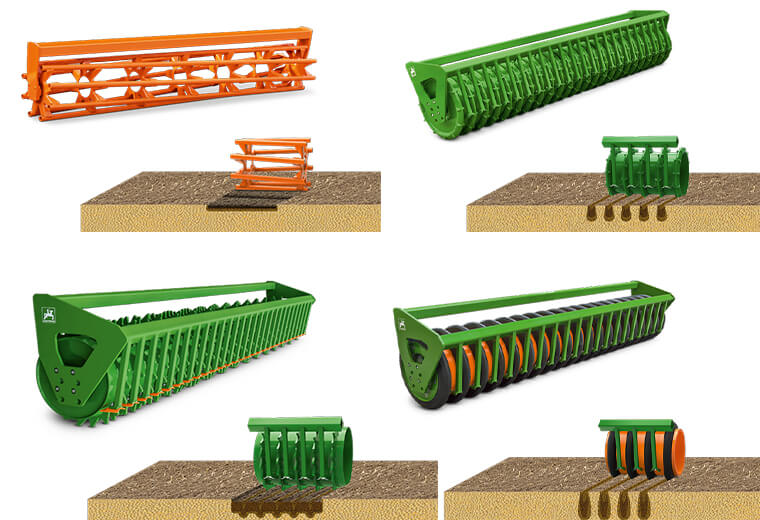

The most important task of a roller is reconsolidation. Due to the
many possible challenges; seed type, soil conditions, lifting power of
the tractor. A large variety of different rollers is available.
