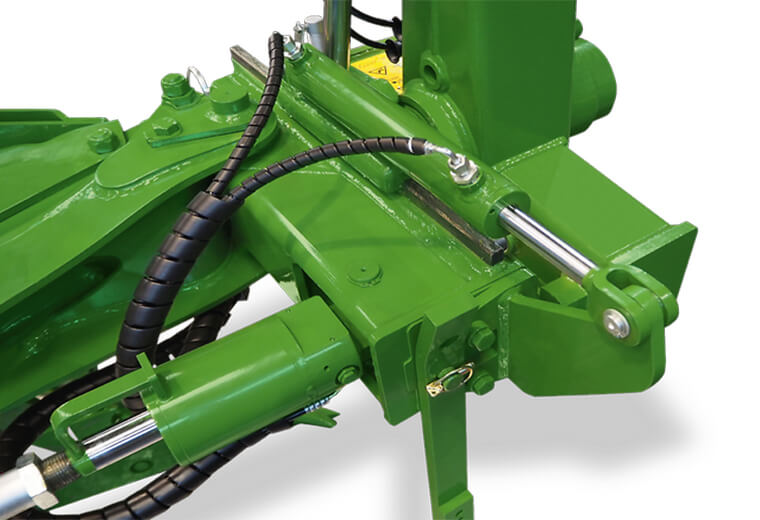

Mechanical or Hydraulic width adjustment is available. The standard furrow width adjustment can be altered in 4 steps by manually pivoting the leg fixing consoles. On the Cayros V the furrow width can be hydraulically adjusted from the tractor using a display.

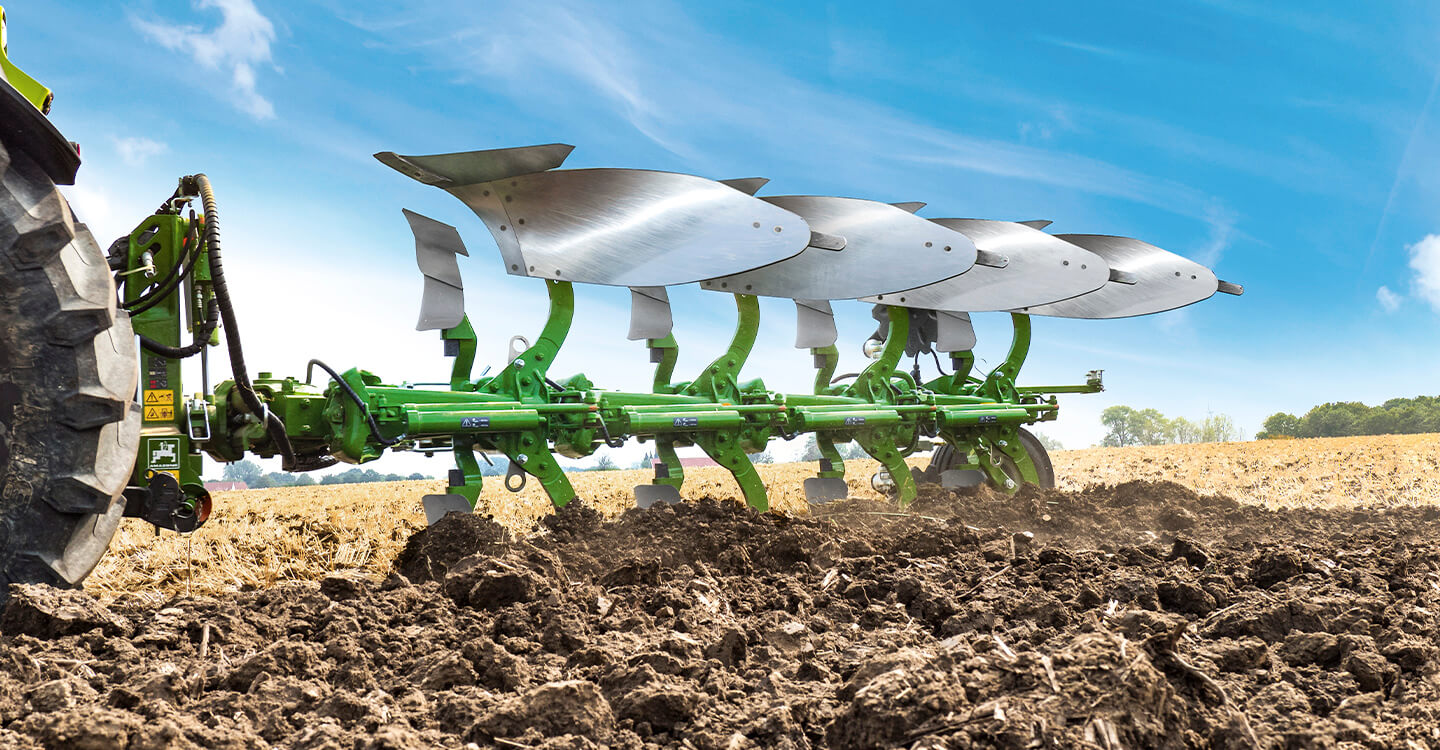

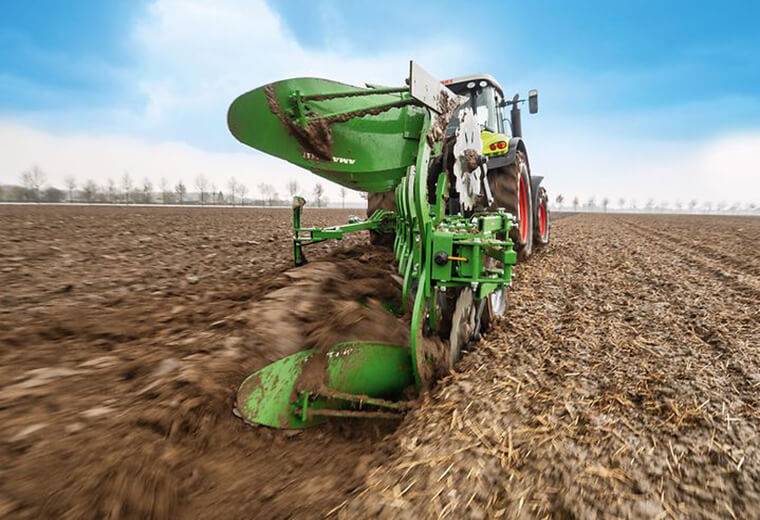

The plough body is at the heart of any plough and is first in line when it comes to quality of work and effective operation. The WXL430 plough body is capable of working, even in hilly terrain, at a depth of 15 – 28cm with a maximum furrow width of approximately 55cm. It is well suited for any soil type from light peat or sandy soils to heavy sticky clay ground. With this type body it also leaves the furrows wider at the bottom so they can accommodate tractors with wider tyre widths.

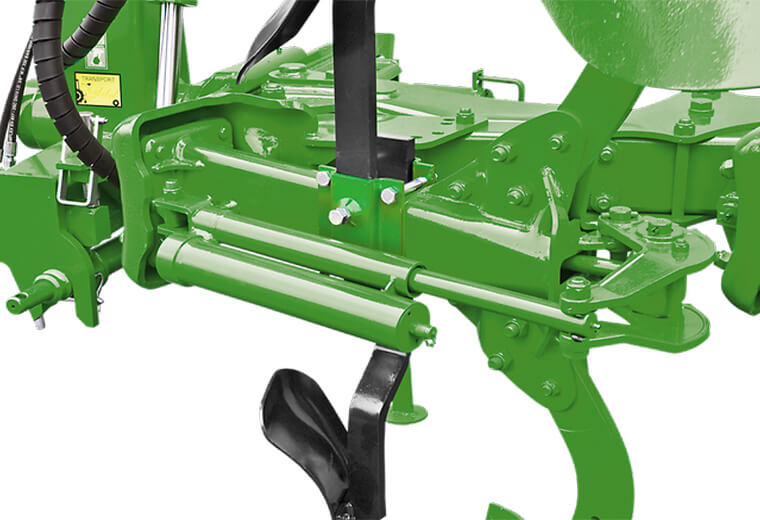

When triggered the plough body pushes in a piston in the accumulator via the hydraulic cylinder. The gas is compressed and automatically returns the body to its inital position after passing the obstacle. Connected to a nitrogen filled piston accumulator the hydraulic pressure can be adjusted from the driver’s seat to increase or decrease the pressure required to trigger the release.

Unique to Amazone, AmaProtect 36 is included with all new ploughs. This gives you 3 years manufacturer warranty for added piece of mind.

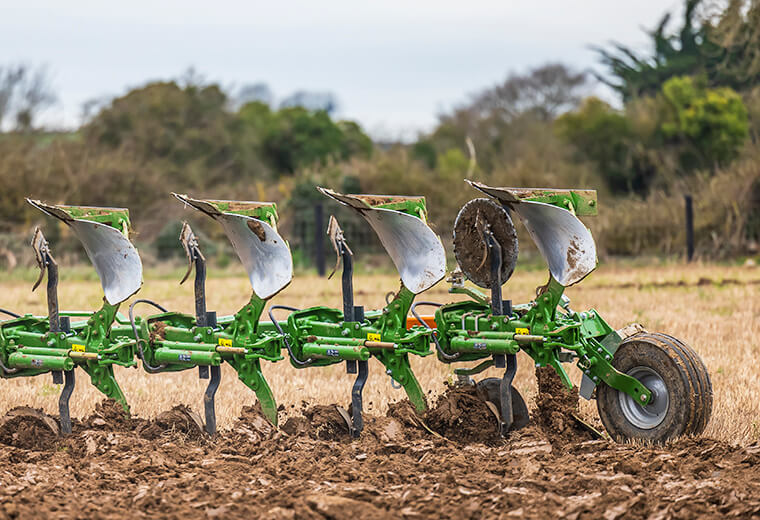

The disc coulters precise cutting action helps achieve full turning and complete incorporation of crop residues as well as leaving an effective furrow clearance. Plain 500mm diameter discs are available.

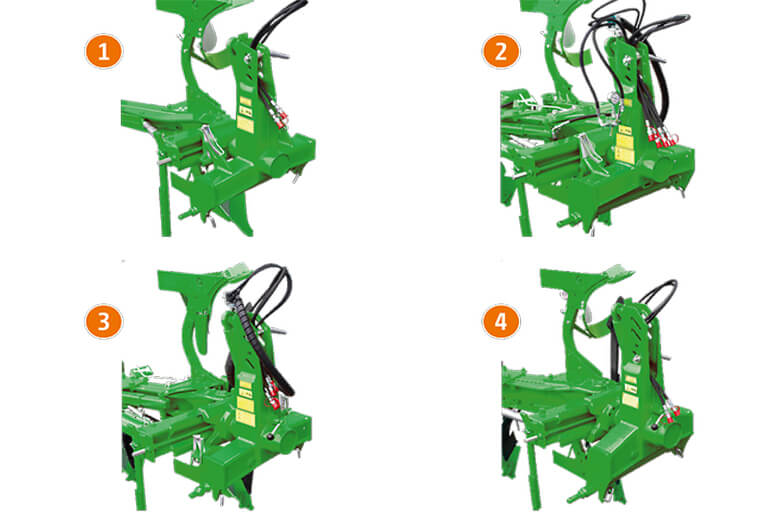

All headstocks on Cayros ploughs feature a turnover system that uses a double-acting cylinder with automatic changeover. This ensures that the turnover of the plough is smooth and jerk-free. All headstocks have slotted top link holes, so that the plough/tractor combination can contour follow in uneven ground.
