Disc Harrows and Cultivators
The advantages of AMAZONE Disc Harrows and Cultivators
-

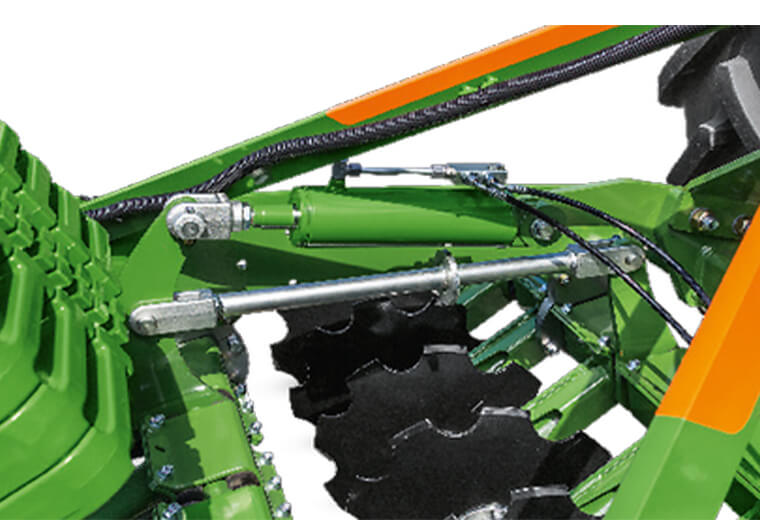

Depth Control
Convenient and precise setting of the working depth from the driver’s seat in all conditions using the optional hydraulic depth adjustment. Mechanical working depth adjustment is easily done centrally by swivelling round spacer elements on the left hand side of the machine.
-

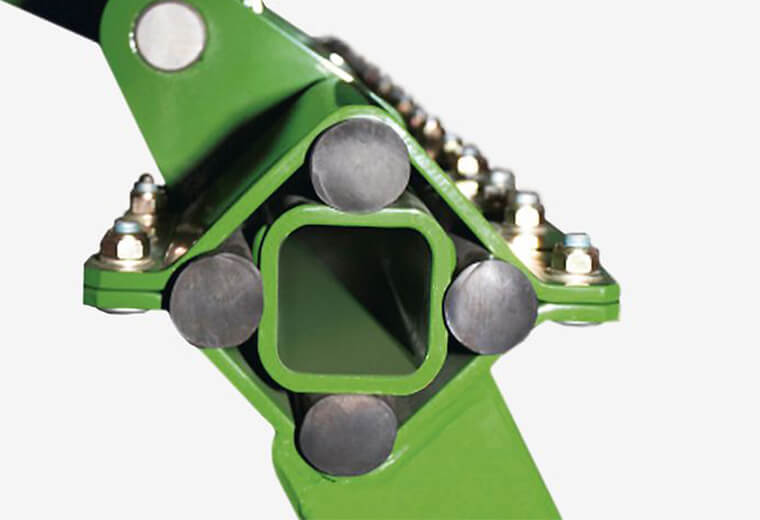

Rubber Disc Suspension
Each concave disc can be individually adjusted to the ground contour thanks to the individual disc suspension using rubber spring elements. These maintenance-free rubber spring elements also serve as an overload safety device by allowing each individual disc to move upwards.
-
Seed Bed Prep
Due to the small disc diameter, a high peripheral speed of the disc is achieved ensuring a very good crumbling effect, making the Amazone disc harrow ideally suited for seedbed preparation.
-
Maintenance Free Bearings
The disc bearing with two-row angular roller bearings is sealed by a face seal. This reliably prevents the ingress of foreign bodies and oil leakage. The bearings are completely maintenance-free thanks to the oil bath filling.
-

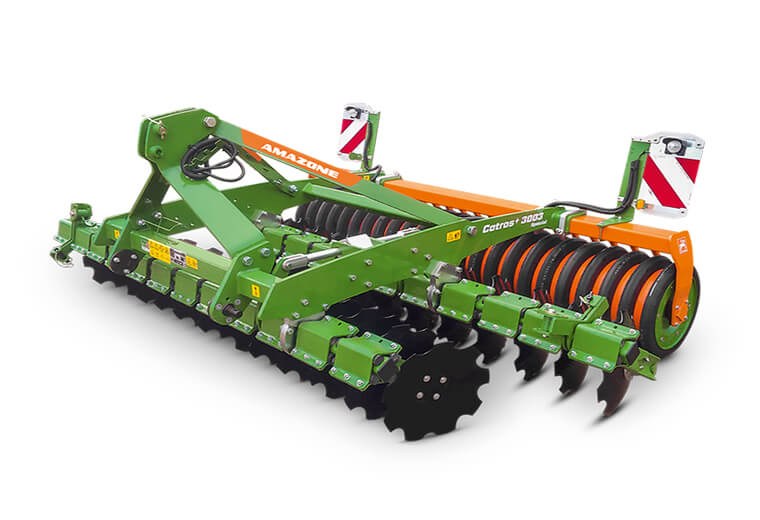

Entry Level Models
The Amazone compact disc harrow range extends from the Catros Special, a start-up model, to the Catros series with five mounted and three towed versions, the Catros⁺ for large operations, the Catros XL for stubble clearing and the towed Certos-2TX.
-

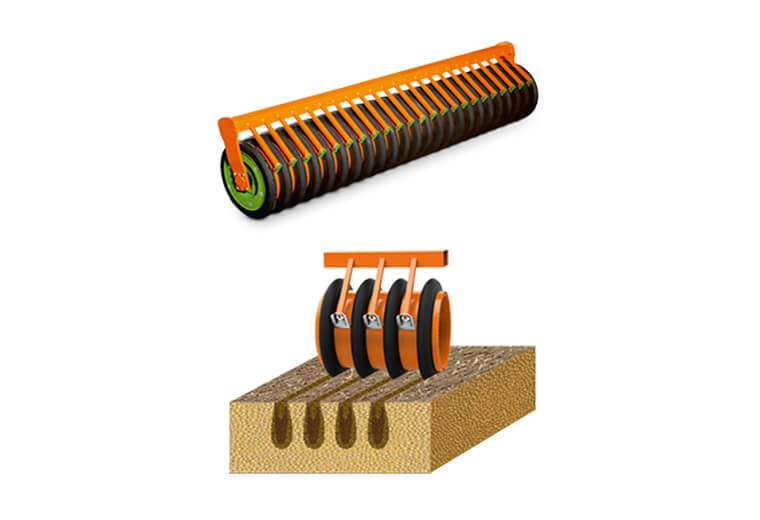

Extensive Range of Rollers
A choice of 11 different depth control rollers makes it possible to obtain the desired reconsolidation and crumbling, depending on the type of soil. Trailing harrows are also available for perfect levelling.
The AMAZONE Disc Harrow Range
Mounted Compact Disc Harrow

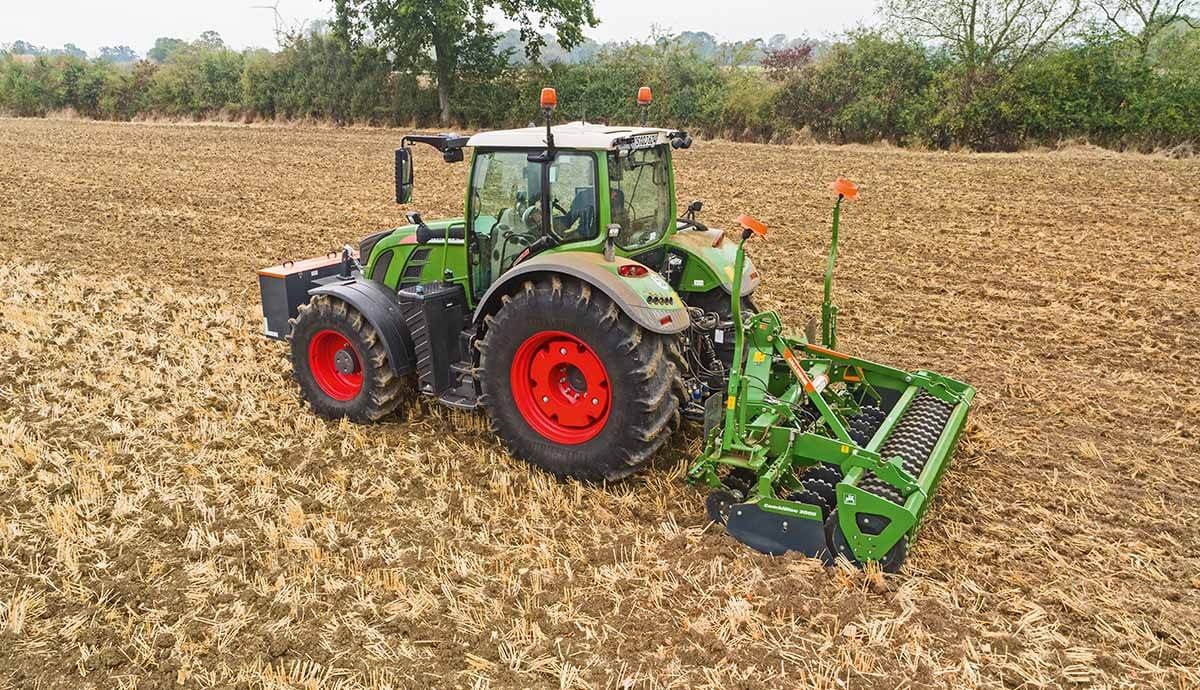

CombiDisc
The mounted CombiDisc compact disc harrow in its 3 m working width is ideally suited to high forward speeds, especially when sowing with a harrow-mounted seed drill. With working depths of 3 cm to 8 cm, an optimum seedbed is created. The wide roller programme offers, for any soil type, the most suitable roller for the optimum reconsolidation.
Mounted Compact Disc Harrow

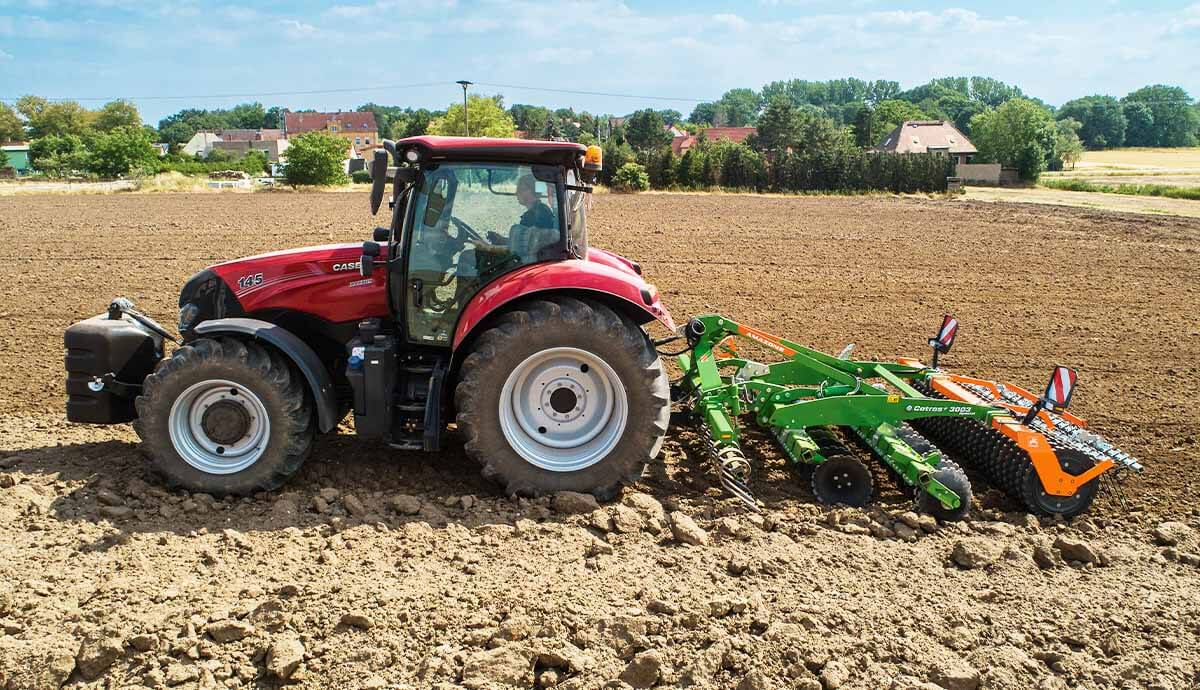

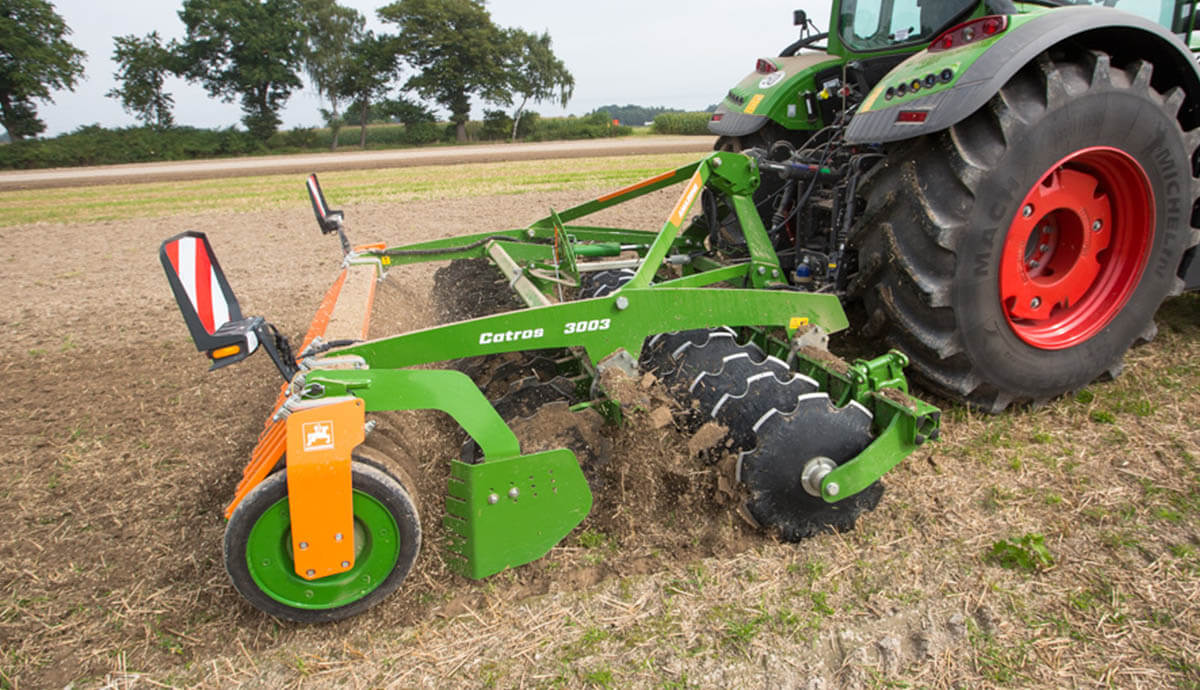

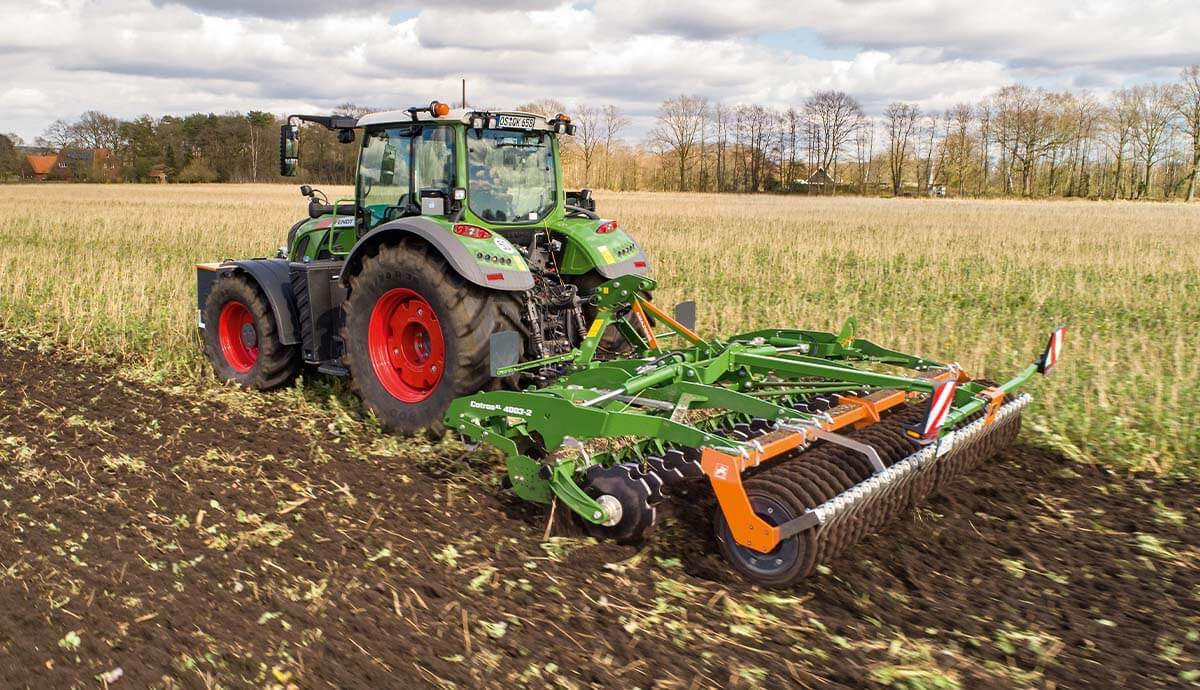

Catros
The Catros and Catros+ compact disc harrows are ideally suited for shallow and intensively mixing soil tillage. Thanks to its easy pulling, and working widths from 3 to 4m, especially high forward speeds and impressive work rates are possible.
Mounted Compact Disc Harrow
Catros Special
The Catros Special mounted compact disc harrow is ideally suited
for fast, shallow and intensively mixing soil tillage. With its robust
design, and in working widths from 2.5 m to 4 m, it is the ideal
entry-level model for the small to medium-sized farm.
Mounted Compact Disc Harrow

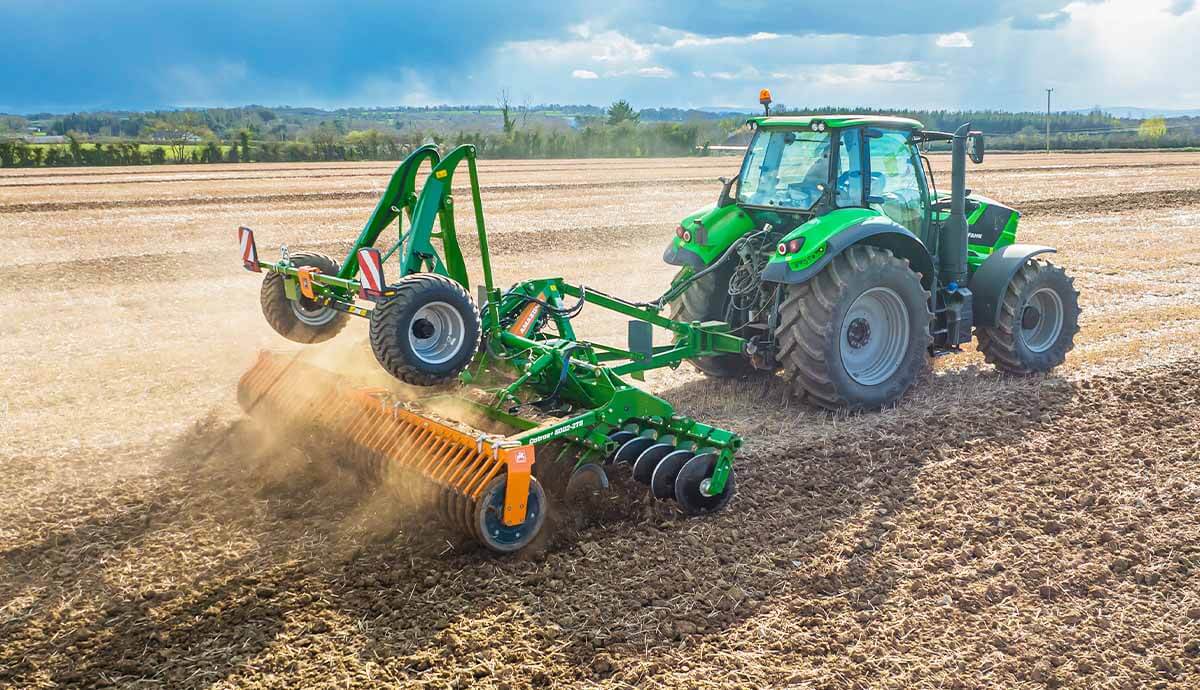

Catros XL
Due to its open frame design and the large through passage
potential, the CatrosXL compact disc harrow is optimally suited to farms
with much organic matter. Due to the large diameter, fine or coarse
serrated, 610 mm discs, working depths down to 16 cm are no problem. In
working widths of 3 m to 4 m and operational speeds of 12 to 18 km/h,
high acreage outputs with an excellent quality of work can be achieved.
Trailed Compact Disc Harrow
Catros⁺ 02-2TS
The Catros⁺-2TS compact disc harrows are perfect for the shallow and
intensive mixing of stubbles and soil. Exceptionally high speeds with
high surface area coverage are possible thanks to their extremely low
pulling power requirement in the working widths from 4 m to 6 m.
Large Area Seed Drill

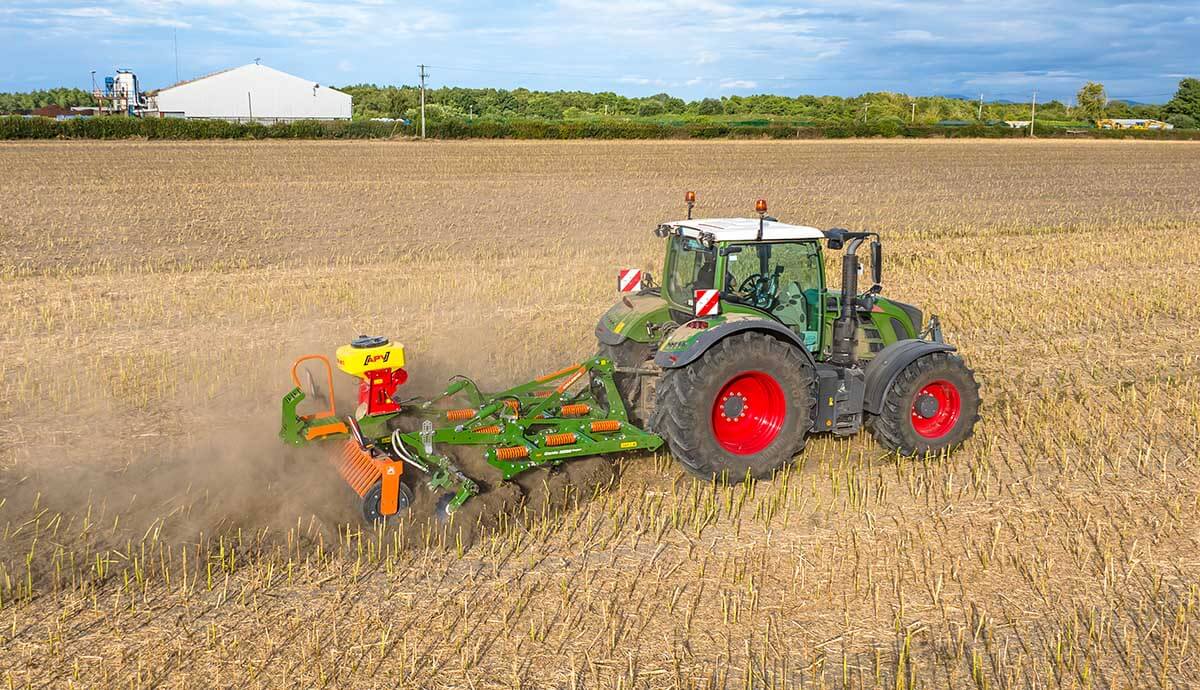

Cenio
As the “little brother” of the Cenius, Cenio, designed as a light,
but universal mulch cultivator, rounds off the bottom end of the
Amazone product range for 3-point linkage mounted cultivators.
Mounted Cultivator

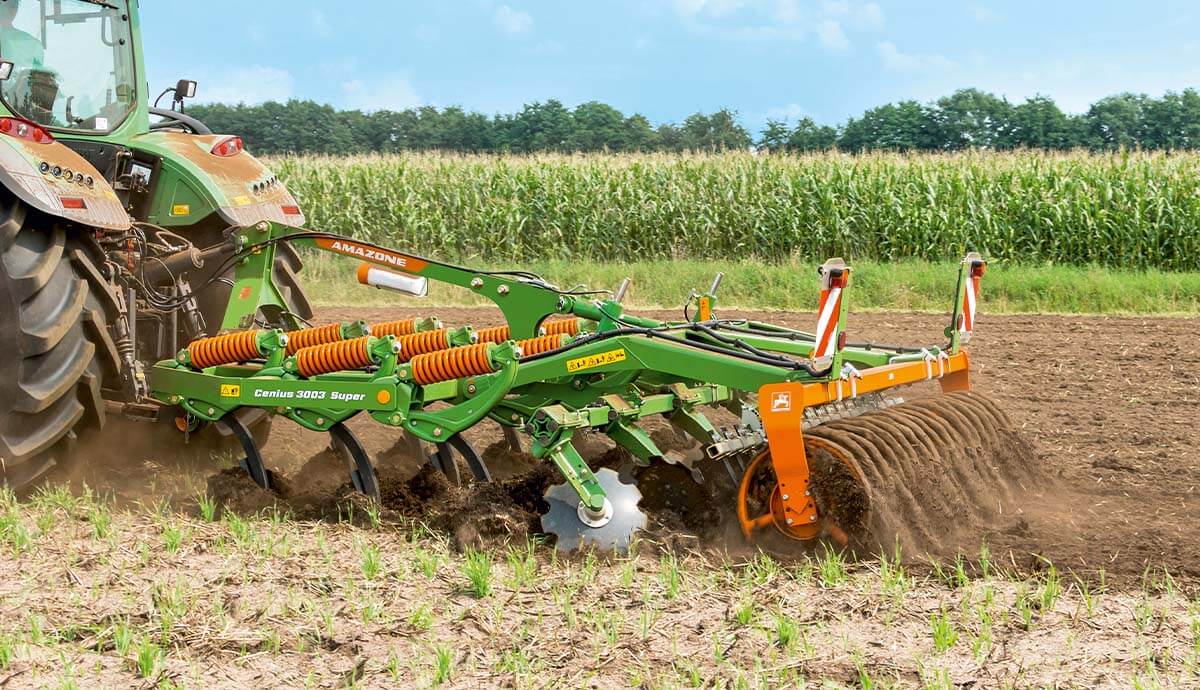

Cenius
The 3-stagger Cenius mounted cultivator in working widths of 3 m
to 4 m can be operated from shallow stubble tillage down to topsoil deep
loosening. Due to the wide-ranging share and roller programme, the
implement can be matched to virtually any field conditions.
Trailed Disc & Tine Cultivator

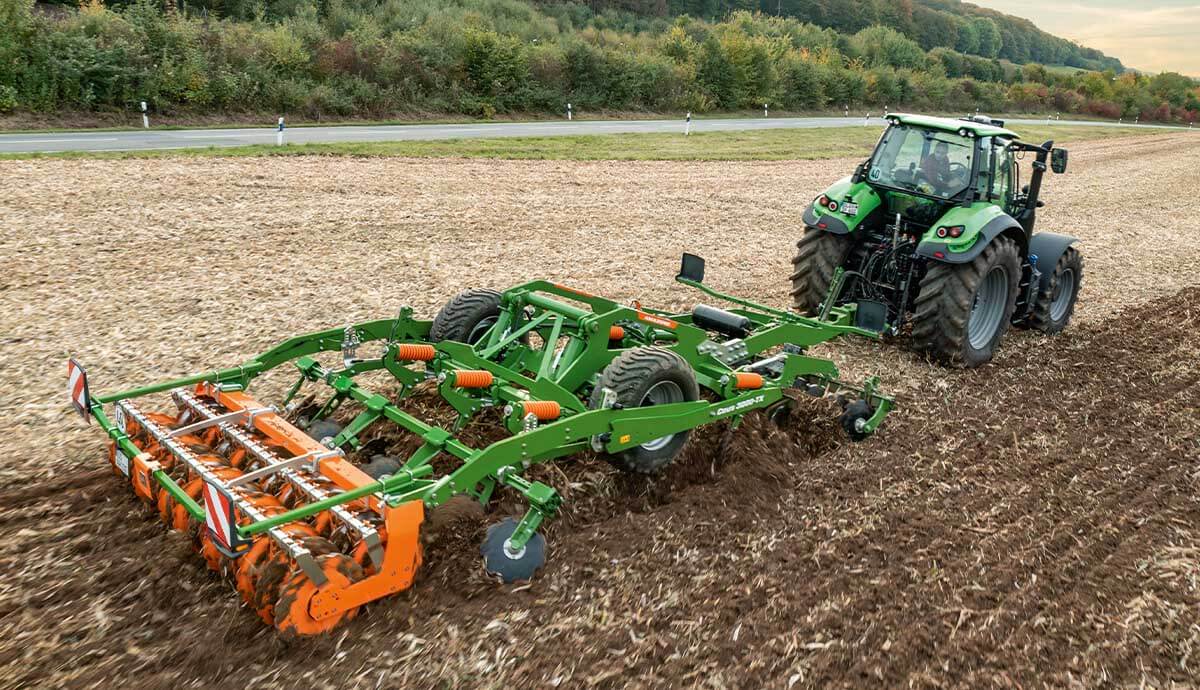

Ceus
The Ceus trailed disc & tine combination cultivator, in
working widths from 3 m to 7 m, is ideal for the deep loosening of soils
together with the simultaneous incorporation of a large amount of
organic matter at the shallowest possible depth. The combination of a
disc element followed by tines enables the Ceus to offer the advantages
of both disc harrows and cultivators in a single compact machine.
Trailed Disc Harrow Cultivator Combination

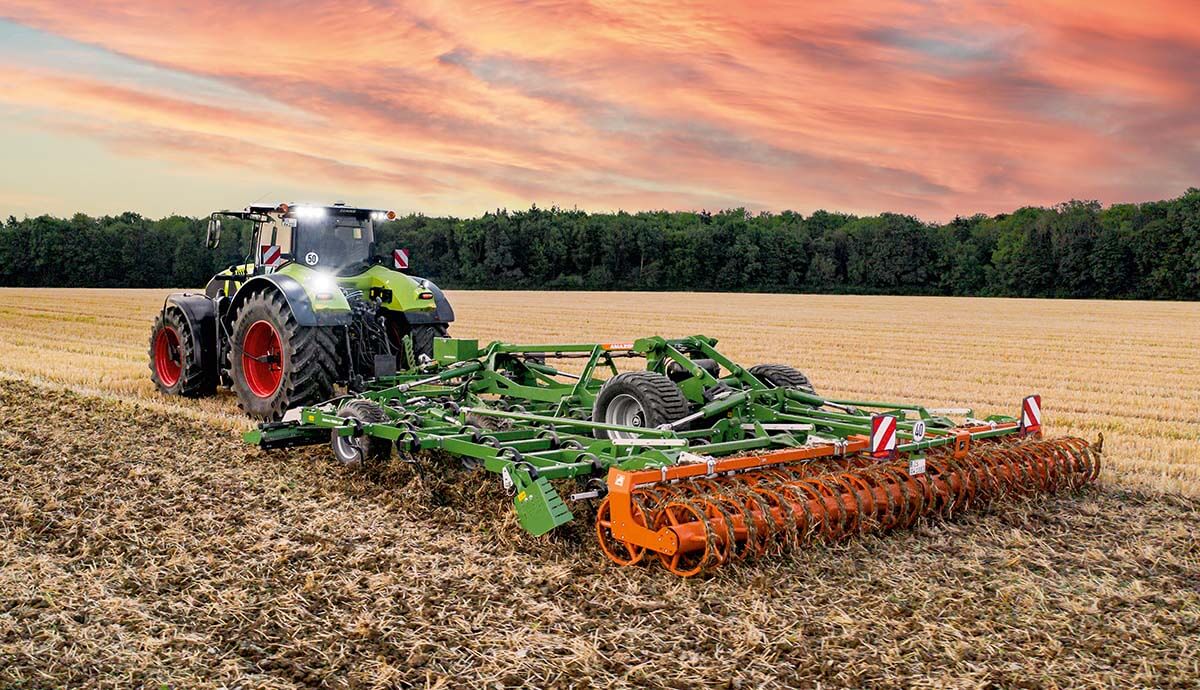

Cobra-2TX
The Cobra is a 6-stagger, shallow cultivator in working widths of 6
m and 7 m and offers a multitude of applications. It is the all-rounder
for shallow soil tillage from catch crop destruction and shallow
stubble cultivation to seedbed preparation. Due to the wide range of
pre-working tools, shares and rollers, the implement can be matched to
virtually any field conditions.
